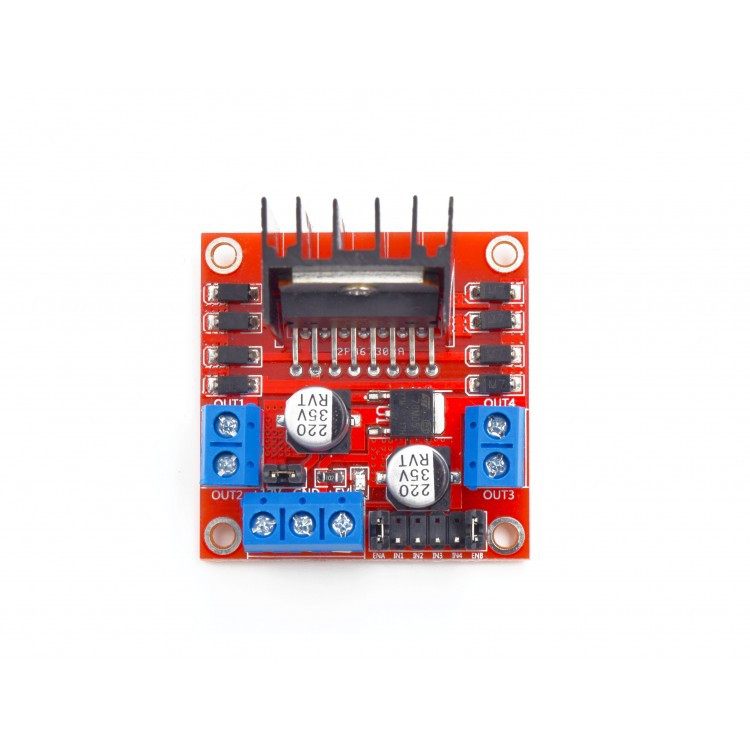

Driver Motor DC L298N PWM Controller kontroller Arduino Dual H-Bridge
Kategori: komponen
Rp 19.000
Spesifikasi:
- Driver: L298N
- Driver power supply: +5V~+46V
- Driver Io: 2A
- Logic power output Vss: +5~+7V (internal supply +5V)
- Logic current: 0~36mA
- Controlling level: Low -0.3V~1.5V, high: 2.3V~Vss
- Enable signal level: Low -0.3V~1.5V, high: 2.3V~Vss
- Max power: 25W (Temperature 75°C)
- Working temperature: -25°C~+130°C
- Dimension: 43.5x43.5mm
Stok: 0
Berat: 15 gr
