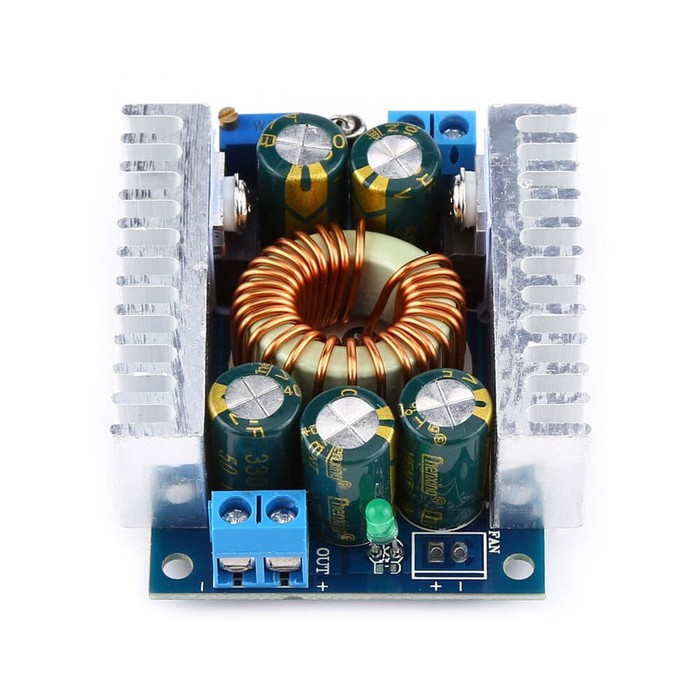

Modul Module Step Down Stepdown 12A 12 A DC Buck Converter Konverter

Spesifikasi
-Module Properties: non-isolated buck module (Step Down)
-Input voltage: 4.5-30V (do not exceed 30V!)
-Output voltage: continuously adjustable 1.25-30V
-Output Current: 0-12A (8A normal) 100W, enhance heat dissipation up to 200W
-Operating temperature: -40 to +85 C
-Operating frequency: 300KHz
-Conversion efficiency: up to 95% (efficiency depends on input and output voltage, current, pressure)
-Short circuit protection: Yes (limit current 14A) , please try not to short-circuit
-Overtemperature protection: Yes (Auto shut off the output after overtemperature)
-Input reverse polarity protection: None, (if necessary, please install a diode at input parts)
-Installation: four 3mm screws
-Connection: solderless terminals
-Dimension: 60x51x22mm
