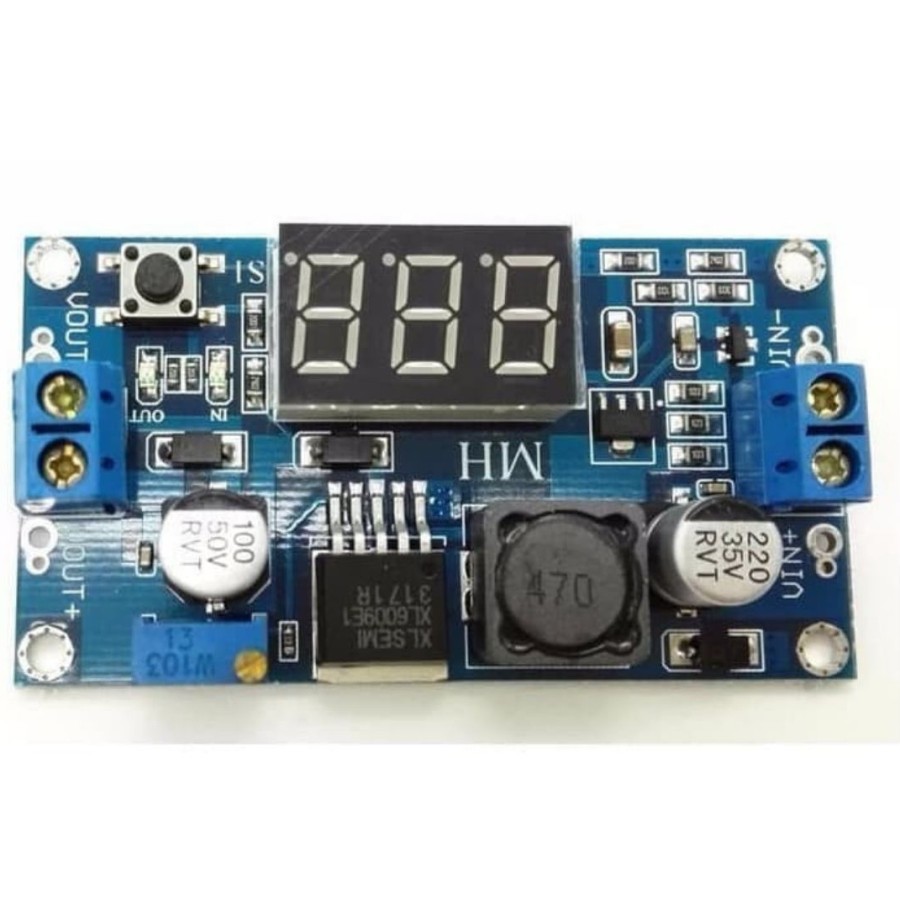

Modul Module Stepup Step Up DC-DC 4A Xl6009 Display 7 segment Boost

Cara Penggunaan:
1).Short press: input/output display options
2).Moderate press: Enter the fine-tuning state .Increase or decrease the offset (the default is 0), when the voltage display inaccurate use .Short according to the regulation, long press or long according to restore
3).Long press: the state of low power consumption, the digital tube and the lights are out, the normal work of the module. Click the button again to restore. Normal display

Specification:
-> Input voltage: 5V-32V
-> Output voltage: 4V-38V
-> Modules Type: Non-isolated step-up (Boost)
-> Rectification: Non-synchronous rectification
-> High switching frequency 400KHz
-> Rated Output Current: 3.0A
-> Peak Output Current: 4.0A
-> Module size: 43mm x 21mm x 14mm (L x W x H)
-> Input mode: IN + input positive level, IN-input negative
-> Efficiency: Up to 94%
