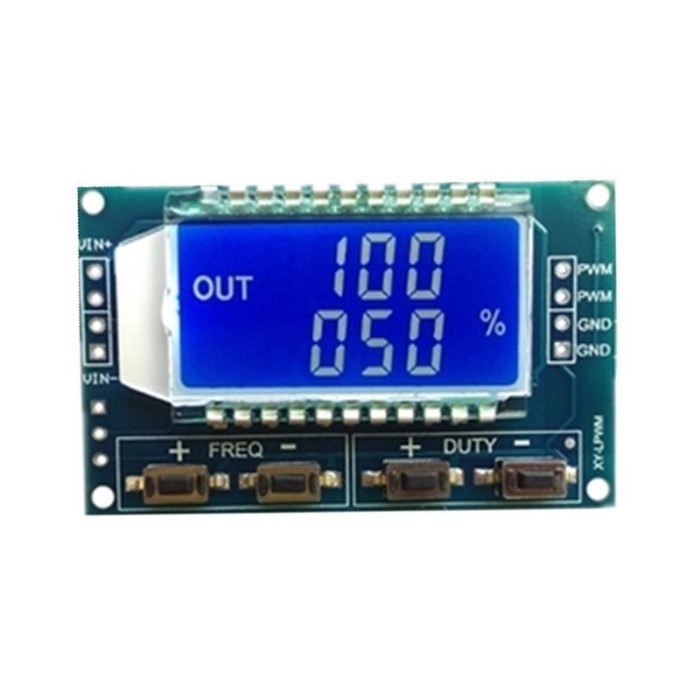

PWM Signal Generator Module Modul 3.3-30V 1 - 150KHz 150 khz

Features:

1.LCD high definition display
2.Support UART
3.Support frequency adjustment
4.Support duty cycle adjustment
5.High precision detection
6.Support power-down memory function
7.1-Channel PWM output
8.Dual Work Mode
9.Knob supports lock function to avoid misoperation
10.Support enable output

Parameters:

1.Product name: XY-KPWM PWM Signal Generator;
2.Model: XY-KPWM;
3Work Voltage:DC 3.3V-30V;
4.Frequency range(Normal mode):1Hz~150KHz;
5.Frequency range(Precise mode):1Hz~15KHz;
6.Frequency accuracy:2%;
7.Duty cycle accuracy:1% at Normal mode;
8.Duty cycle accuracy:0.1% at Precise mode;
9.Duty cycle range:0.00%-100%;
10.Output Current:About 5-30mA;
11.Output amplitude:Same to input voltage;
12Work Temperature:-40~85;
13Work Humidity:0%~95%RH;
14.Size:79*43*37mm;
