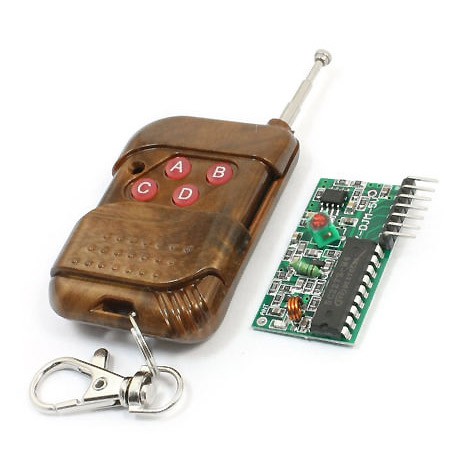

Remote Control Wireless RF 4 Channel Receiver Arduino

Spesifikasi:
1.Tegangan Kerja Remote: 12V DC (Batere remote)
2.Konsumsi Arus Remote: 10mA
3.Frekuensi transmisi: 315 MHz
4.Jarak transmisi: 50-100m
5.Jumlah tombol: 4
6.Tegangan Kerja Receiver: 5V DC
7.Konsumsi Arus Receiver: 4.5mA
8.Modulasi: ASK (amplitude modulation)
9.Suhu kerja: -10 sd +70 C
10.Sensitivitas Receiver (dBm): -98 dB
11.Encoder type: Fixed code
12.Ukuran: 41 x 22 x 6.6mm


PinOut:
Pin---Nama---Fungsi
1 --- VT --- Output status indication
2 --- D3 --- Data output
3 --- D2 --- Data output
4 --- D1 --- Data output
5 --- D0 --- Data output
6 --- 5v --- Positive power
7 --- GND --- Negative power
8 --- ANT --- Antenna side
