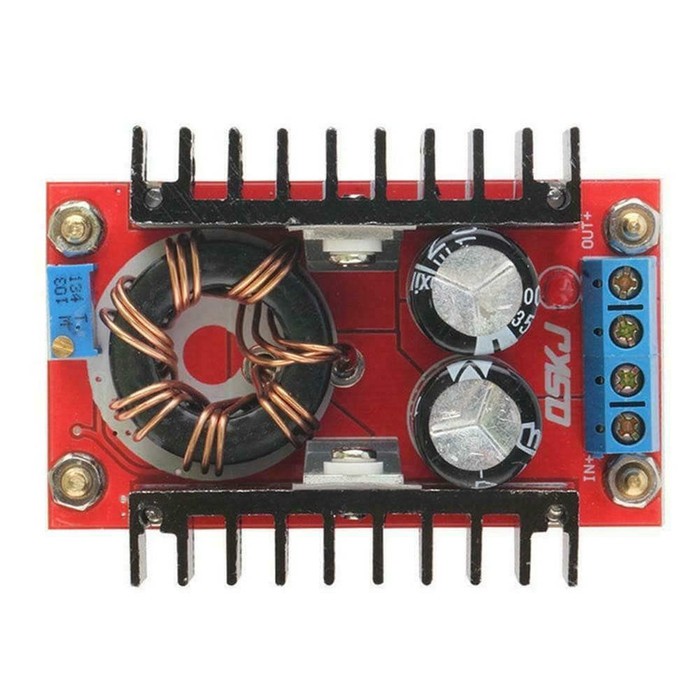

Step Up Stepup 150w DC Boost Converter Konverter Power Supply QSKJ

Spesifikasi:
-Module Properties: non-isolated step-up module (BOOST)
-Wiring: solderless terminal
-Input voltage: 10-32V DC (input voltage can not be higher than the output voltage, the output stable at the set value)
-Output voltage: 12-35V DC (adjustable)
-Output current: 10A (MAX)
-Input current: 16A (MAX) (more than 10A please strengthen heatsink)
-Output power: natural cooling 100W (MAX), strengthening cooling 150W (MAX) real power
-Conversion efficiency: 94% (when Output 19V 2.5A Input 16V)
-Output ripple: 2% (MAX)
-Working temperature: industrial (-40 to +85 C) (environmental temperature, more than 40 degrees, please reduce power to use, or - enhance cooling)
-Full-Load temperature: 45 degrees
-No-load current: 25mA typical
-Voltage regulation: +/- 0.5%
-Load regulation: +/- 0.5%
-Dynamic response speed: 200uS +/- 5%
-Short circuit protection: No (Please install a fuse or protection circuit at input parts)
-Input Reverse protection: No (Please connect a diode at input parts)

-Dimension: 65x35x23.5mm
