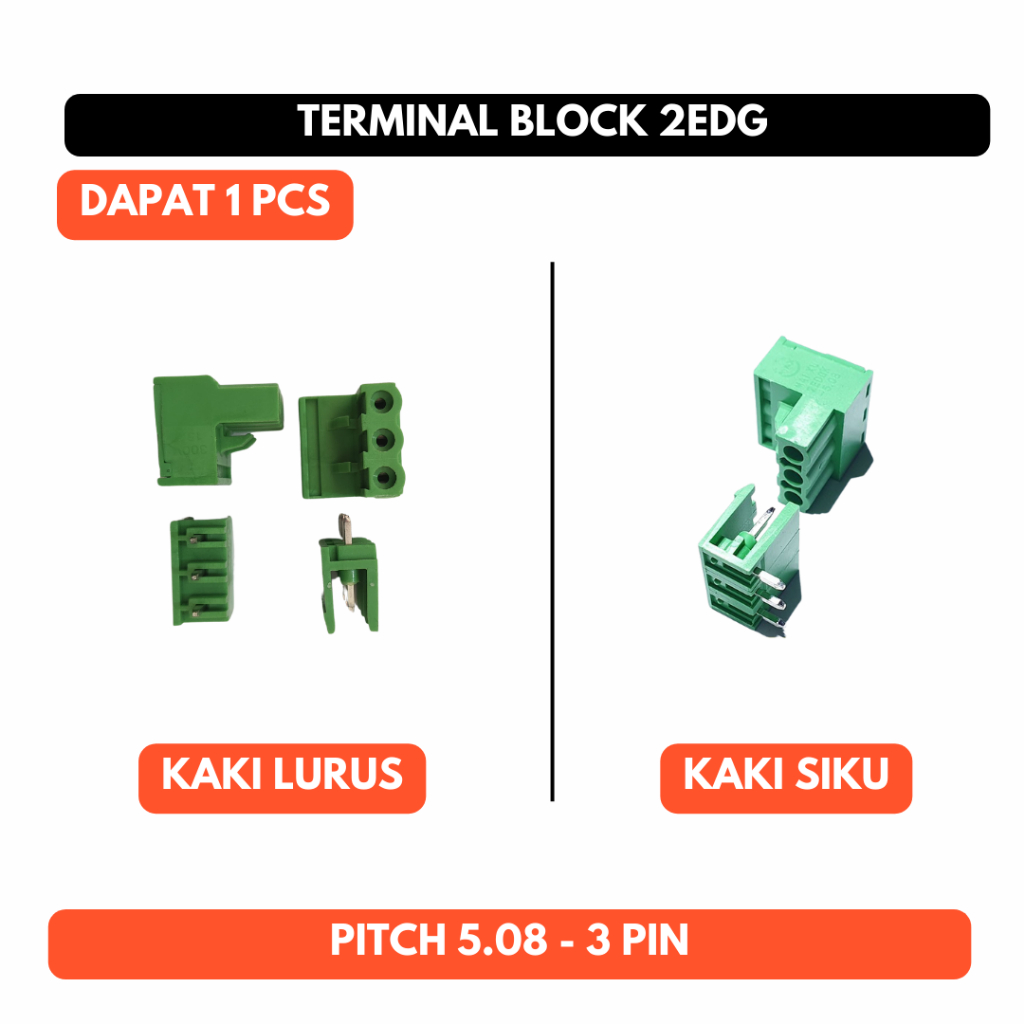

Terminal Block 3P 2EDG Pitch 5.08 3 Pin Konektor Blok Kaki Siku Lurus
Kategori: komponen
Rp 2.800
Spesifikasi:
1.Voltage rating: 300V
2.Current rating: 15A
3.Pitch: 5.08mm
4.Wire range: Solid wire(AWG): 18-30
5.Torque: 1.8 Lb-In
6.Screw: M4
7.Wire strip length: 4.5~5mm
8.Withstanding Voltage: 1.5KV
9.Operating temperature: -40℃ to +105℃
10.Soldering temperature: 250℃ ±10℃ /5Sec
Stok: 10
Berat: 10 gr
SKU Varian: -
