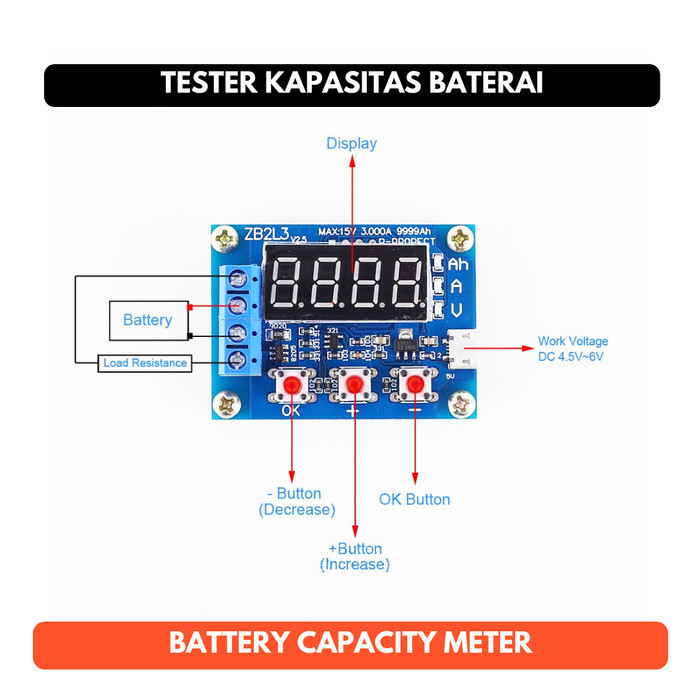

Tes Kapasitas Baterai Alat Tester Battery Capacity Aki 18650 ZB2L3

Spesifikasi:
1. Power Supply Voltage: DC4.5-6V (micro USB interface)
2. Working current: less than 70mA
3. Discharge voltage: 1.00V-15.00V resolution 0.01V
4. Termination voltage range: 0.5-11.0V

Error Codes :
Err1: the battery voltage higher than 15V
Err2: the battery voltage is lower than the setting voltage termination
Err3: the battery is unable to withstand the load discharge current resistance is too large or line
Err4: the current is too large (current is more than 3.1A)
