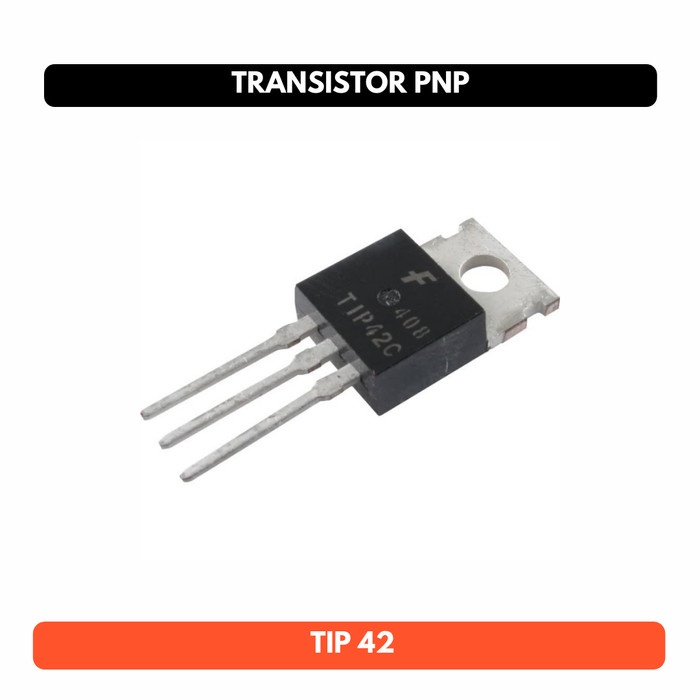

TIP42 Transistor Power 42 TIP 42C TIP42C PNP TO220 TO-220
Kategori: komponen
Rp 2.500
Spesifikasi:
1. Package Type: TO-220
2. Transistor Type: PNP
3. Max Collector Current(IC): –6A
4. Max Collector-Emitter Voltage (VCE): –100V
5. Max Collector-Base Voltage (VCB): –100V
6. Max Emitter-Base Voltage (VEBO): –5V
7. Max Collector Dissipation (Pc): 65 Watt
8. Max Transition Frequency (fT): 3 MHz
9. Minimum & Maximum DC Current Gain (hFE): 15 – 75
10 Max Storage & Operating temperature Should Be: -65 to +150 Centigrade
Stok: 0
Berat: 2 gr
